Flex 1 with Agitation - High Precision Cleaning

Maximum Cleaning Effectiveness and Process Control

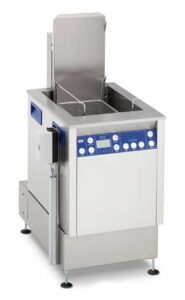

Elmasonic Flex 1Tovatech proudly offers the Elmasonic Flex 1 single stage industrial ultrasonic cleaner. The superior features of the Flex 1 allow you to dramatically improve cleaning effectiveness and increase your cleaning cycle speeds by 20% depending on the particular cleaning requirement.

Is your small manufacturing operation still using manual cleaning to meet very demanding cleanliness requirements? Switching to the Elmasonic Flex 1 will significantly reduce your cleaning costs.

Features of Elmasonic Flex 1 Workstation:

  • Precise oscillation yields faster, more thorough cleaning and increased throughput
  • Degasses new solutions to increase cleaning efficiency at the outset
  • Sweep and pulse modes improve cleaning uniformity and effectiveness
  • Multi-frequency options meet all cleaning requirements
  • Time and temperature control optimizes cleaning cycles
  • Optional shower rinse station for post-cleaning wash down

10 Options to Achieve Ultrasonic Cleaning Perfection

The Elmasonic Flex 1 is offered in 5 tank sizes and 2 frequency pairs to give you a broad choice in specifying an industrial ultrasonic cleaner delivering the ultimate cleaning performance.

  • Tank capacities 7, 10, 17, 19 and 30 gallons
  • Ultrasonic frequencies 25/45 kHz and 35/130 kHz

Match the Frequencies to the Job

  • 25 kHz for coarse removal of lapping and polishing media
  • 45 kHz for fine removal of oil and grease in industrial, craft and jewelry manufacturing
  • 35 kHz for removal of oil and grease from metal, glass and hard precious stones, or general purpose reliable thorough cleaning
  • 130 kHz for sensitive surfaces in jewelry and electronic component cleaning

Additional features

  • Manual setting of ultrasonic intensity
  • User-friendly operation by keys and displays
  • Timer controlled cleaning, user-defined switch-off and auto shutoff after 12 hours
  • Bath temperature control from 30 to 80ºC (86 to 176ºF); safety shut-off at 90ºC
  • Liquid-level monitor; low-level auto-shutoff
  • Cavitation-resistant stainless steel for long service life

Elmasonic Flex 1 Models

Note: These tank sizes apply to both Flex 1 and Flex 2 models which are comprised of X-tra Pro tanks.

X-tra Pro 300

Tank Volume: 8.5 gal

Flex_1_withBasket

Dimensions (L x W x H in.):
11.7 x 13.1 x 10.4

X-tra Pro 550

Tank Volume: 14.6 gal

Flex_1_withBasket

Dimensions (L x W x H in.):
11.6 x 19.7 x 12.1

X-tra Pro 800

Tank Volume: 22.4 gal

Flex_1_withBasket

Dimensions (L x W x H in.):
11.6 x 19.7 x 18

X-tra Pro 1200

Tank Volume: 29.8 gal

Flex_1_withBasket

Dimensions (L x W x H in.):
20.4 x 23.6 x 12.6

X-tra Pro 1600

Tank Volume: 44.5 gal

Flex_1_withBasket

Dimensions (L x W x H in.):
20.4 x 23.6 x 18.7

Your Time Is Important

Our PhD support staff are experts at finding the perfect cleaner for your needs and budget

Calls normally last less than 5 min!

(973) 913-9734

or

Chat With Us

Elma 2-Year Warranty

Elma 2 Year Warranty

Elma stands behind their products. All Elma ultrasonic cleaners come with an industry-best 2 year warranty. If the unit malfunctions because of a manufacturing defect, simply call us and we’ll repair or replace the unit.
